Product PDF

BenchPro™ BP-S Digital Shipping Scale

  • Simple operation, easy to set up

  • Large six-digit backlight LCD display with 1 in (25 mm) characters protected by heavy-duty tempered glass

  • Powered USB HID point of sale interface

  • Nine-pin RS-232 interface for use with SMA and NCI protocols

  • Four AA alkaline battery operation for portability

  • Gravitational compensation allows for adjustment of factory calibration to meet your local gravity setting, non-approved

  • Compatible with FedEx Ship Manager® and UPS Worldship®

  • View FedEx FTIP BenchPro BP-S for Program Pricing



Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

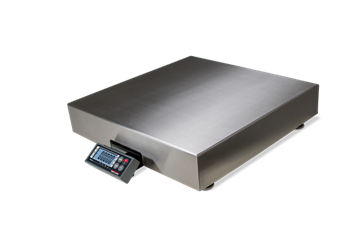

BenchPro™ BP-S Shipping Digital Scale

Digital Shipping Scale

The BenchPro BP-S digital postal scale is NTEP approved and available in a range of standard sizes with capacities up to 300 pounds (150 kilograms). The tempered glass display is scratch-resistant and withstands the impact of accidentally dropped parcels. UPS and FedEx shipping programs can be paired with the BP-S through USB-HID connection, and other third-party software can be connected through the RS-232 port.

Power:
In-line power supply (included)

Input:
100 to 240 VAC, +10% -15%, 3-wire w/ground
Terminated with standard USA 3-prong plug

Battery:
(12 × 14 in scale only)
Four AA alkaline batteries, 6 V, with low battery indication at 4.3 volts

Power Consumption:
12 V at 0.1 amps DC minimum

Frequency:
50/60 Hz ±3 Hz

Battery Life:
50 to 250 hrs depending on backlight and auto-shutdown settings

Excitation:
3.0 V

Resolution:
Internal: 500,000 counts

USB HID:
USB 2.0 full speed; Vendor ID: 1C19; Product ID: 0002

RS-232 Cable (Included):
10 ft DB 9-pin male to female, straight pass-through

USB Cable (Included):
46 in (1,168 mm) A/B type USB cable

Dynamic Response:
Response time for stable weight:
0 to 1,000 d, 1,000 ms, maximum mean average
1,000 d +, 1,500 ms, maximum mean average

Overload Protection:
Corner and center overload protection

Annunciators:
 Six: Zero, Gross/Brutto, Net, W1/W2/W3 multi-range

Display:
Large six-digit backlight LCD display with 1 in (25 mm) characters protected by heavy-duty tempered glass

Keys/Buttons:
Four: Units, Tare, On/Off, F1
Minimum key press life of 500,000 cycles

Material:
Display: ABS plastic housing
Scale base: Powder coat painted mild steel base plate and load bridge with stainless steel weight platter
BP-S 12 × 14 in: Die-cast aluminum load bridge and base housing with stainless steel weight platter

Warranty:
Two-year limited

Approvals:
NTEP 17-002
Canada Weights and Measures: AM-6050
CE Marked

Dimensions
  A B C D
12 × 14 in 12.00 in 14.00 in 14.50 in 2.70 in
12 × 16 in 12.00 in 16.00 in 15.30 in 4.32 in
18 × 18 in 18.00 in 18.00 in 21.10 in 4.30 in
20 × 20 in 20.00 in 20.00 in 23.10 in 4.30 in
24 × 24 in 24.00 in 24.00 in 27.10 in 4.30 in
Note: 1 in = 25.4 mm

Resources/Downloads

Title View Email Category Type
Measuring Greatness with the Green Bay Packers View Email Dimensioning|Bench Scales Application Story
The Diversity of Digital Bench Scale Systems Email Bench Scales Articles

Title Download Email
BenchPro BP-S Catalog Page Download Email

Title Version Revision Download Email Category Archived
BenchPro Shipping BP-S Scales Operation Manual I Download Email Platform Scales|Postal / Shipping Scales No
BenchPro FedEx Ship Manager USB Setup Download Email Platform Scales|Postal / Shipping Scales No

Title Collateral Wizard Request Download Email Category
BenchPro BP-S Series Request Download Email Postal / Shipping Scales

Title Version Size Release Date Download Email
UPS WorldShip BenchPro Update (2022) 2 34 KB 09/29/2017 Download Email

Title View Download Email Category
BenchPro™ Series Shipping and Postal Digital Scale View Download Email Postal / Shipping Scales|Bench Scales
iDimension & BenchPro Setup for UPS WorldShip Software, Part 2 View Download Email Dimensioning|Packages and Parcels Dimensioning
iDimension & BenchPro Setup for UPS WorldShip Software, Part 3 View Download Email Dimensioning|Packages and Parcels Dimensioning
iDimension & BenchPro Setup for UPS WorldShip Software, Part 1 View Download Email Dimensioning|Packages and Parcels Dimensioning

Parts

Part # Description List Price Cart/Quote
174879 Scale, Bench Pro Series Model BP 1214-75S, 150 x 0.05lb/75 x 0.02kg, SS Weight Platter

List Price: $775.00
182993
Scale,Bench Pro Series Model BP 1216-75S, 150 x 0.05lb/75 x 0.02kg, SS Weight Platter 12 x 16 inch Dimensions

List Price: $1,285.00
182391
Scale,Bench Pro Series Model BP 1818-50S, 100 x 0.02lb/50 x 0.01kg, SS Weight Platter 18 x 18 inch Dimensions

List Price: $1,740.00
182378
Scale,Bench Pro Series Model BP 1818-75S, 150 x 0.05lb/75 x 0.02kg, SS Weight Platter 18 x 18 inch Dimensions

List Price: $1,740.00
182382
Scale,Bench Pro Series Model BP 1818-150S, 300 x 0.1 lb/150 x 0.05kg, SS Weight Platter 18 x 18 inch Dimensions

List Price: $1,740.00
182395
Scale,Bench Pro Series Model BP 2020-150S, 300 x 0.1 lb/150 x 0.05kg, SS Weight Platter 20 x 20 inch Dimensions

List Price: $1,950.00
182399
Scale,Bench Pro Series Model BP 2424-150S, 300 x 0.1 lb/150 x 0.05kg, SS Weight Platter 24 x 24 inch Dimensions

List Price: $2,150.00

Options

Part # Description List Price Cart/Quote
174783 Bracket and Post, Option Bench Pro Series, Model BP 1214, Height 10 inches

List Price: $50.00
180901 Display,Customer Bench Pro Series, with 68in cable and capacity labels, no keyboard

List Price: $72.00
174784 Remote Display,Bench Pro Series, with 68in cable and capacity labels, with keypad

List Price: $88.00
183103 Mount,Display Bench Pro Scale 16in Stand

List Price: $215.00
178501 Adapter,USB Serial FTDI US232R-100, 3.28 ft, iDim Series for use with RLWS indicator and Postal Scales

List Price: $60.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
