Flintec® PB Aluminum, Planar Beam Load Cell

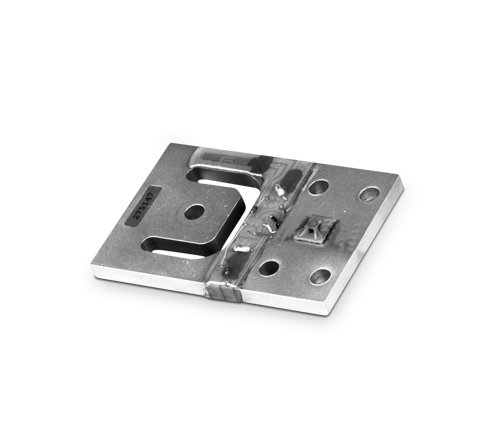

The PB load cell is an inexpensive, alternative planar beam, which can be used in low-profile, light-capacity applications. It has a capacity range from 15 to 150 kilograms and includes 1.5 meters of load cell cable.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

OIML Logo

WARNING: Cancer and Reproductive Harm California Proposition 65
rl-flintec-PB-planar-beam-load-cell

Full Scale Output:
1 mV/V
mV/V/ohm calibration

Output Resistance:
1,000 (± 10) ohm

Input Resistance:
1,180 (± 50) ohm

Material/Finish:
Aluminum

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.060% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
1.5 m

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow shield

Warranty:
One-year limited

Approval:
OIML C3

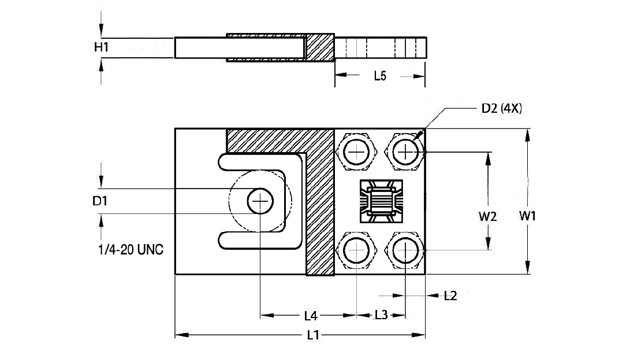

Rated Capacity L1 L2 L3 L4 L5 W1 W2 H1 D1 D2 Deflection (mm) at E max
kg/mm
15 70.0 4.9 14.0 28.0 23.7 39.0 27.8 4.1 7.6 5.1 0.3
37.5 76.2 6.0 15.0 29.3 27.0 44.5 30.0 4.8 7.6 6.6 0.4
75 84.4 6.4 15.0 34.0 27.7 54.8 30.0 6.4 7.6 6.6 0.4
150 107.3 7.8 22.9 45.9 38.4 69.9 44.5 7.9 9.1 8.1 0.6





Resources/Downloads

Title Download Email
Flintec PB Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook F Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart/Quote
96361 Load Cell,Planar Beam PB 15kg 1M 1.0mV/v 1000 OHM AL IP65 Matched Output OIML C3 Without AMP Connector With Threaded Hole (1/4-20). Planar beam

List Price: $85.00
96362 Load Cell,Planar Beam PB 37.5kg 1.5M 1.0mV/v 1000 OHM AL IP65 Matched Output OIML C3 Without AMP Connector With Threaded Hole (1/4-20). Planar beam

List Price: $90.00
96363 Load Cell,Planar Beam PB 75kg 1.5M 1.0mV/v 1000 OHM AL IP65 Matched Output OIML C3 Without AMP Connector With Threaded Hole (1/4-20). Planar beam

List Price: $96.00
96364 Load Cell,Planar Beam PB 150kg 1.5M 1.0 mV/v 1000 OHM AL IP65 Matched Output OIML C3 Without AMP Connector With Threaded Hole (1/4-20). Planar beam

List Price: $108.00

Related Products

rl-RLBLP-load-cell

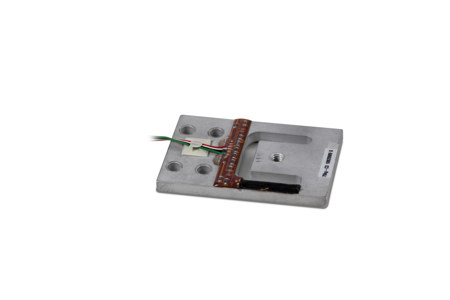

Rice Lake RLBLP Aluminum, Planar Beam Load Cell
