iDimension® SS Integration Software

• Automatically display and/or transmit density and National Motor Freight Classification (NMFC) freight class

• Real-time data access and triggering via REST API Swagger API development toolkit included

• Supported peripherals, including bar code scanners and label printers

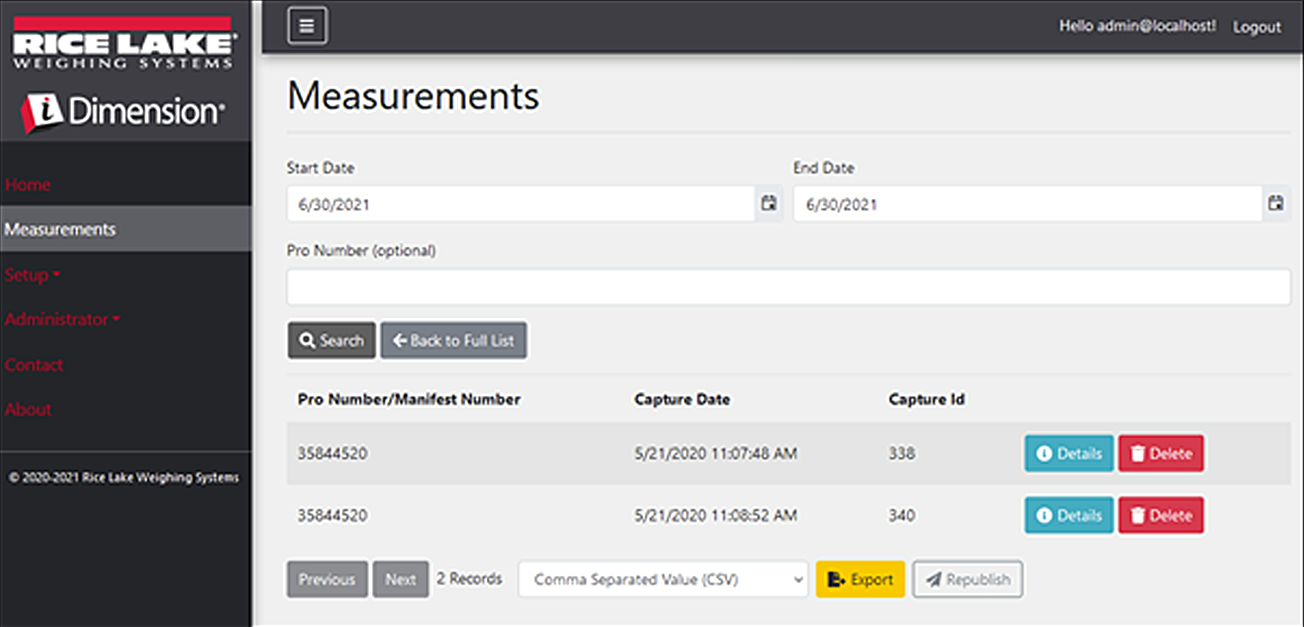

• Measurement database – configurable for capturing and transferring:

  • Identification #, i.e. Pro or sales order number

  • Dimensions L × W × H

  • Scale or manual keyboard weight entry

  • Volume

  • Three configurable user fields

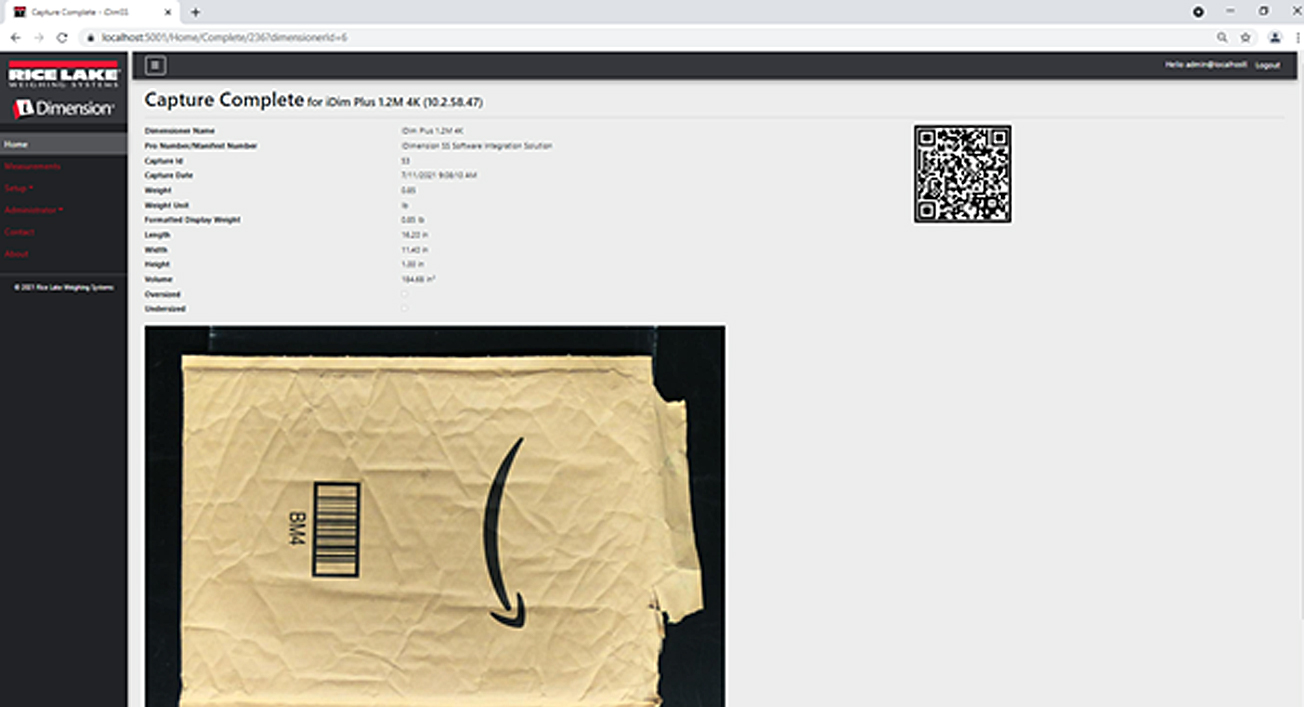

  • Color high resolution images

  • Bounding box images

  • Volumetric conversion

  • Email notification alerts

  • Error logging

• Digital remote I/O configuration for use with PLCs

• Shipping method analyzer for girth and volume analysis thresholds

• iDimension App (free download from ricelake.com)

• Local data storage

• Automatic data export, options include FTP, SFTP, FTPS and SMB configurable

• Data export, including image format composition and annotations available in data export provides output in CSV, JSON, XML and TXT file formats

• QR code display for alternate input into MRP, TMS and WMS systems

• Error logging with high resolution image capture

• Role-based security model protects data and prevents unwanted configuration changes

• Comprehensive application log files available to download

• Forklift database for use with stop and go

SQLite database maximum size capabilities is dependent upon file system type.

System Requirements

• Windows® 10 build 1607 or newer (64-bit only)

• 2.0 GHz processor or faster

• 250 MB hard disk space needed for install

• 8 GB RAM or greater

• Ethernet TCP/IP communication to dimensioning devices plus optional scanners, printers and Rice Lake Weighing 680 and 1280 scale indicators

• Supported web browser (Chrome®, Microsoft Edge®, Firefox®, Safari®)
