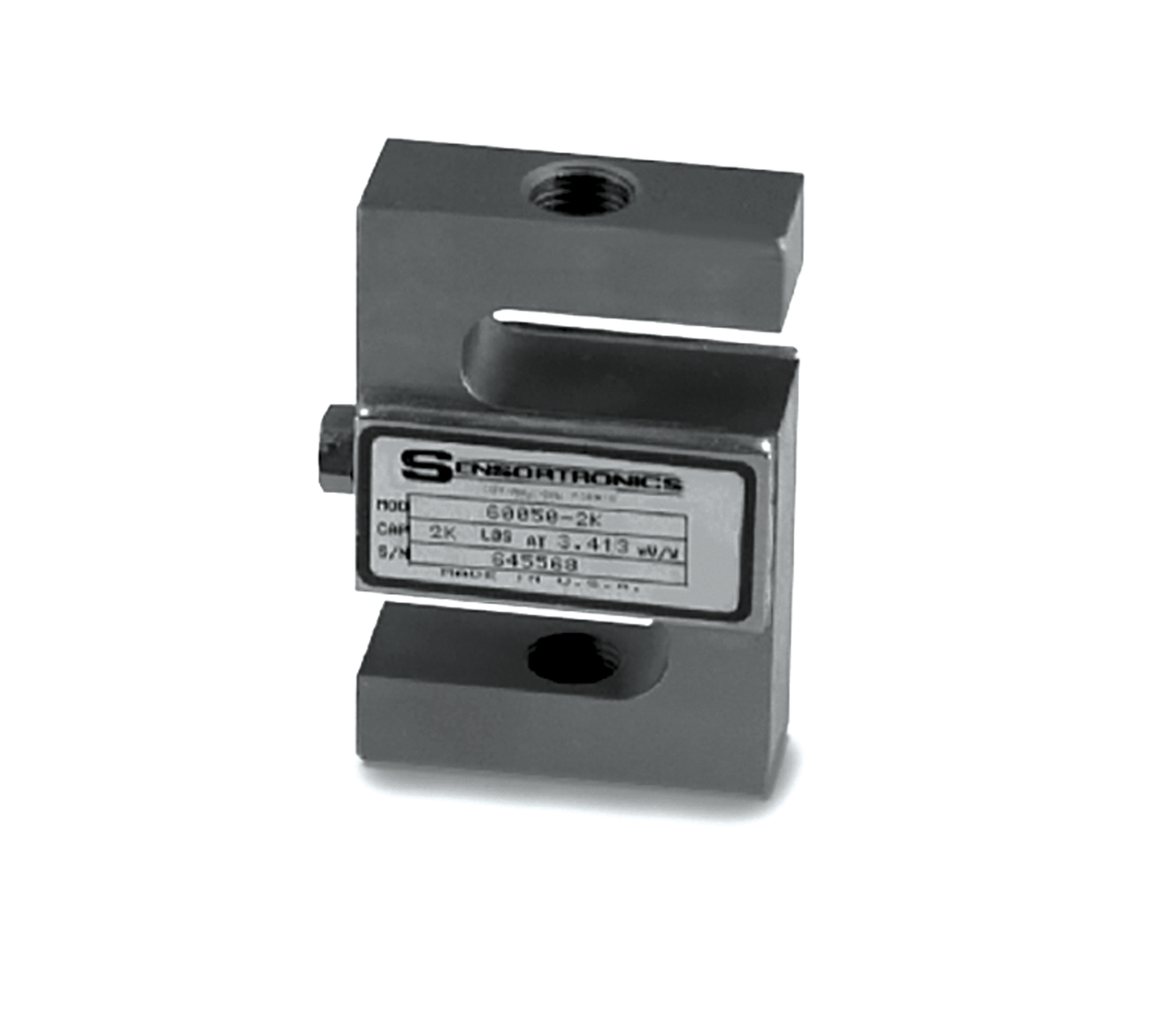

VPG® Sensortronics® 60050 Stainless Steel, S-beam Load Cell

Suitable for single- or multicell applications, this unit is constructed of stainless steel for corrosion protection and has full environmental protection with stainless steel side plates. It's equipped with 20 feet of cable and is available in capacities of 250 to 20,000 pounds.  Capacities of 5,000 pounds or higher have standardized output for multiple-cell installations.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65
rl-VPG-sensortronics-60050-s-beam-load-cell

Full Scale Output:
3.0 mV/V

Output Resistance:
349 to 355 ohms

Input Resistance:
343 to 450 ohms

Material/Finish:
Stainless steel

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 V DC (15 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Diameter:
0.200 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
One-year limited

Approvals:
cFMus

Rated Capacity A B C D E
lb/in
250 3/8-24 UNF 0.75 0.50 2.00 3.00
500 to 1,500 1/2-20 UNF 1.00 0.75 2.00 3.00
2,000 to 3,000 1/2-20 UNF 1.25 1.00 2.00 3.00
5,000 3/4-16 UNF 1.25 1.00 3.00 4.25
10,000 3/4-16 UNF 1.25 1.00 3.50 4.75
15,000 1-14 UNS 1.50 1.25 4.00 5.50
20,000 1 1/4-12 UNF 2.00 1.94 5.00 7.00





Resources/Downloads

Title Download Email
Sensortronics 60050 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook F Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart/Quote
17077 Load Cell,SBM 60050-250 250lb 20ft 3mv/v 350 Ohm WW IP67 SST SENSTRS

List Price: $344.00
17078 Load Cell,SBM 60050-500 500lb 20ft 3mv/v 350 Ohm WW IP67 SST SENSTRS

List Price: $344.00
17079 Load Cell,SBM 60050-750 750lb 20ft 3mv/v 350 Ohm WW IP67 SST SENSTRS

List Price: $344.00
17080 Load Cell,SBM 60050-1K 1000lb 20ft 3mv/v 350 Ohm WW IP67 SST SENSTRS

List Price: $344.00
17081 Load Cell,SBM 60050-1.5K 1500lb 20ft 3mv/v 350 Ohm WW IP67 SST SENSTRS

List Price: $344.00
17082 Load Cell,SBM 60050-2K 2000lb 20ft 3mv/v 350 Ohm WW IP67 SST SENSTRS

List Price: $387.00
17083 Load Cell,SBM 60050-2.5K 2500lb 20ft 3mv/v 350 Ohm WW IP67 SST SENSTRS

List Price: $387.00
17084 Load Cell,SBM 60050-3K 3000lb 20ft 3mv/v 350 Ohm WW IP67 SST SENSTRS

List Price: $387.00
17085 Load Cell,SBM 60050-5K 5000lb 20ft 3mv/v 350 Ohm WW IP67 SST SENSTRS

List Price: $583.00
17086 Load Cell,SBM 60050-10K 10,000lb 20ft 3mv/v 350 Ohm WW IP67 SST SENSTRS

List Price: $583.00
17087 Load Cell,SBM 60050-15K 15,000lb 20ft 3mv/v 350 Ohm WW IP67 SST SENSTRS

List Price: $689.00
17088 Load Cell,SBM 60050-20K 20,000lb 20ft 3mv/v 350 Ohm WW IP67 SST SENSTRS

List Price: $1,033.00
